VESS 10 kWh battery

A deep-cycle LiFePO4 rack battery, modular and scalable from 10.24 kWh up to 645.12 kWh for residential, commercial, industrial and telecom sites.

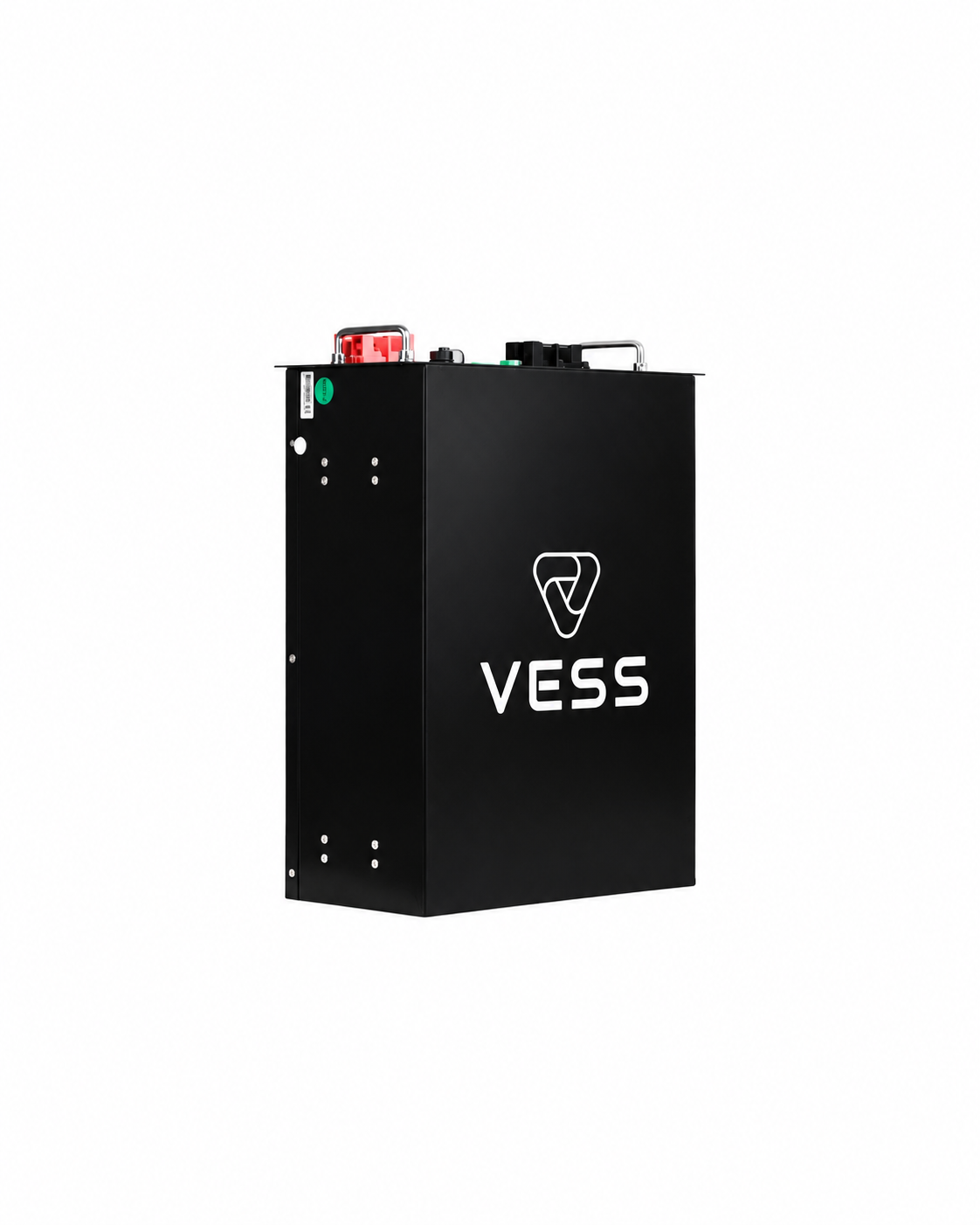

VESS 10 kWh battery, front view
Front

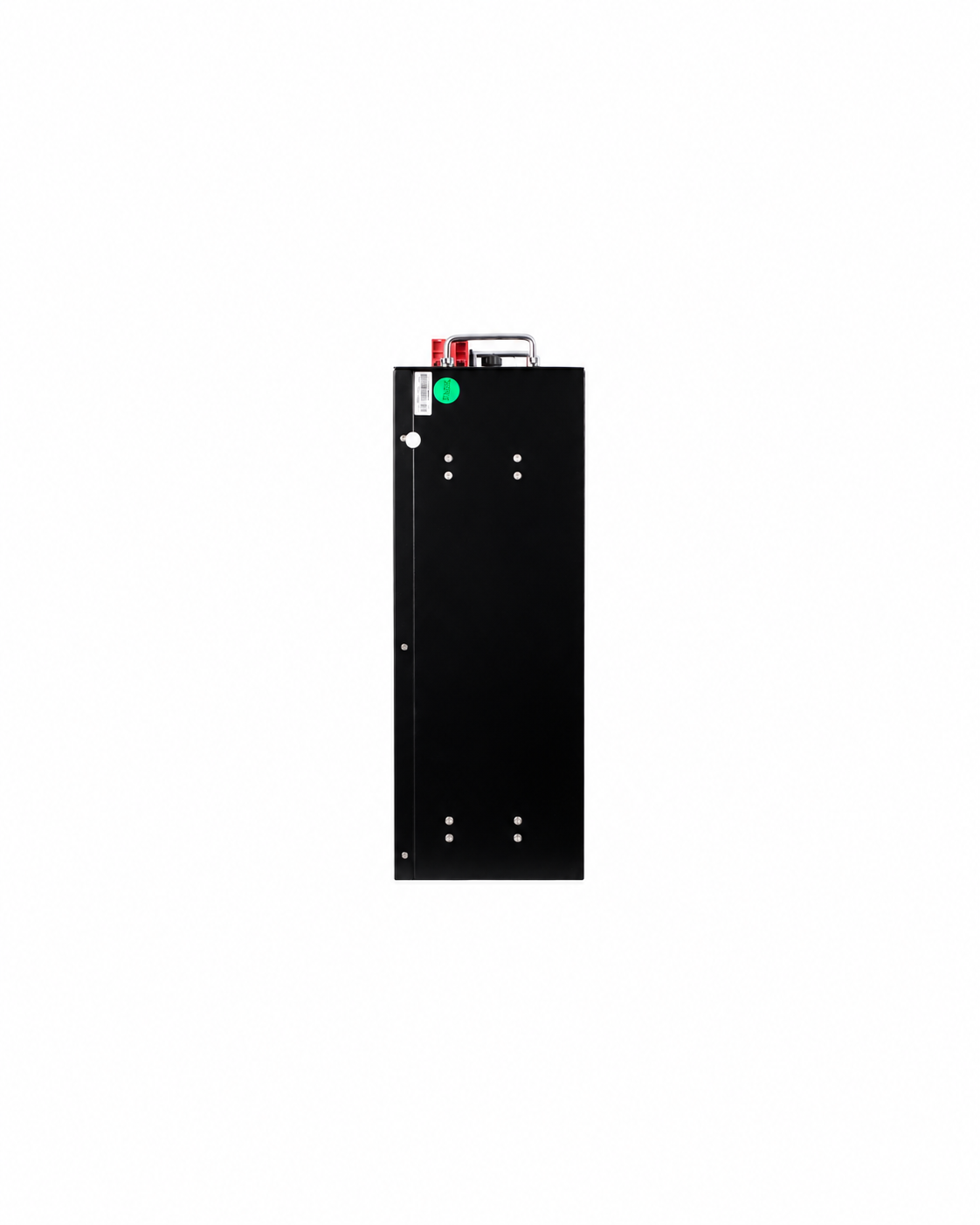

VESS 10 kWh battery, side view
Side

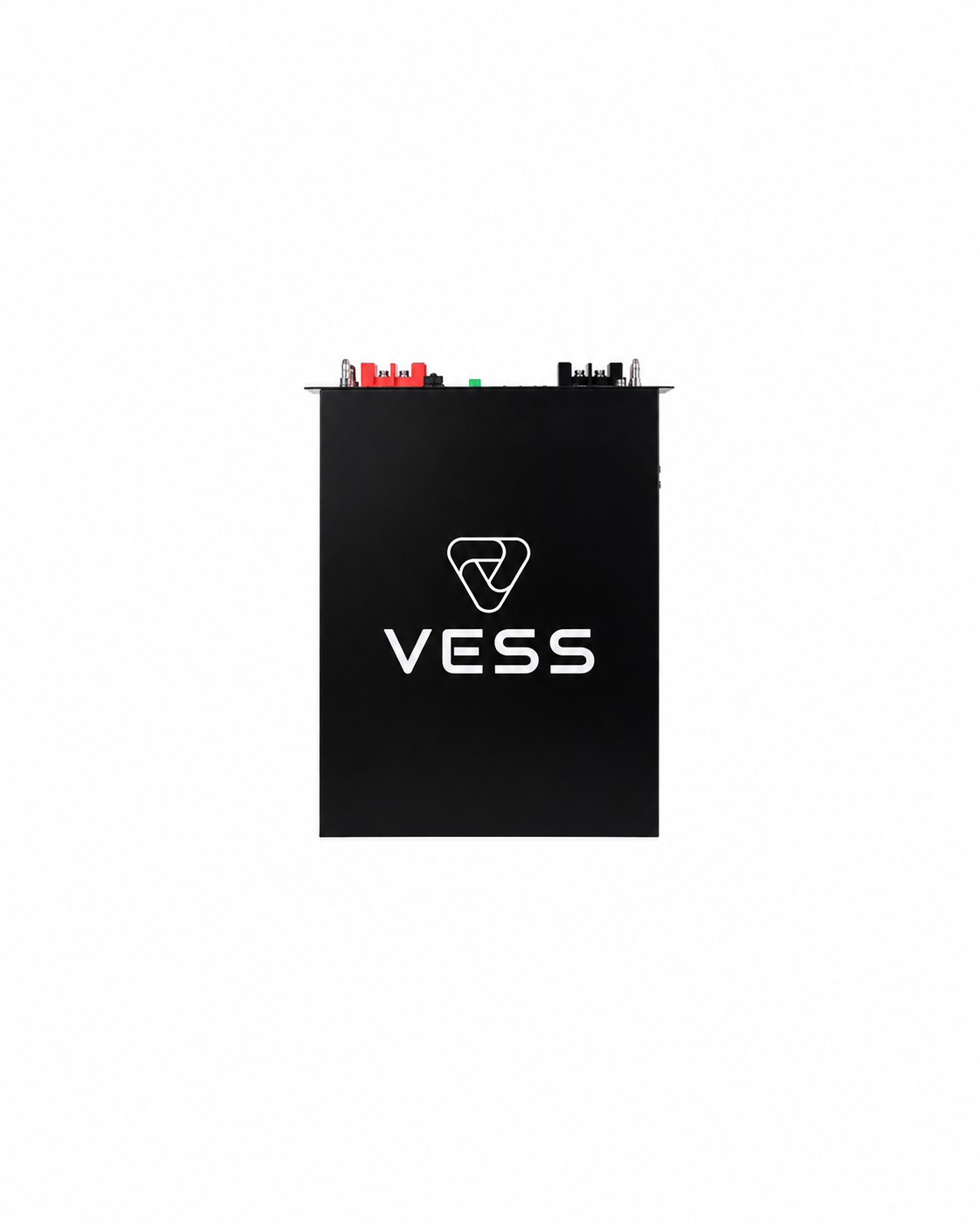

VESS 10 kWh battery, terminal view
Terminals
Model
VESS-RM-51.2V-200AH
Battery type
LiFePO4
Nominal voltage
51.2 V
Nominal capacity
10.24 kWh
Usable capacity
9.216 kWh
Cell configuration
16S2P
Dimensions (W×H×D)
590 × 483 (442) × 222 mm
Weight
95 kg
Charge / discharge voltage
55 V / 47 V
Rated charge
100 A · 5.12 kW
Rated discharge
200 A · 10.24 kW
Peak discharge
250 A · 12.80 kW (1s)
Depth of discharge
90%
Expansion
Up to 63 units in parallel (645.12 kWh)
Communication
RS232, RS485, CAN, optional WiFi & Bluetooth
Operating temperature
Charge 0–55°C · Discharge −20–55°C
Protection level
IP20
Cycle life
> 6,000 cycles at 25°C
Design life
> 15 years at 25°C
Warranty
10 years
Certification
UN38.3 · UL standard battery pack
Delivery period
30 days

Backed for the long term.

Every VESS 10 kWh battery is backed by a 10-year warranty for lasting confidence in your energy system.
